Immediate Despatch

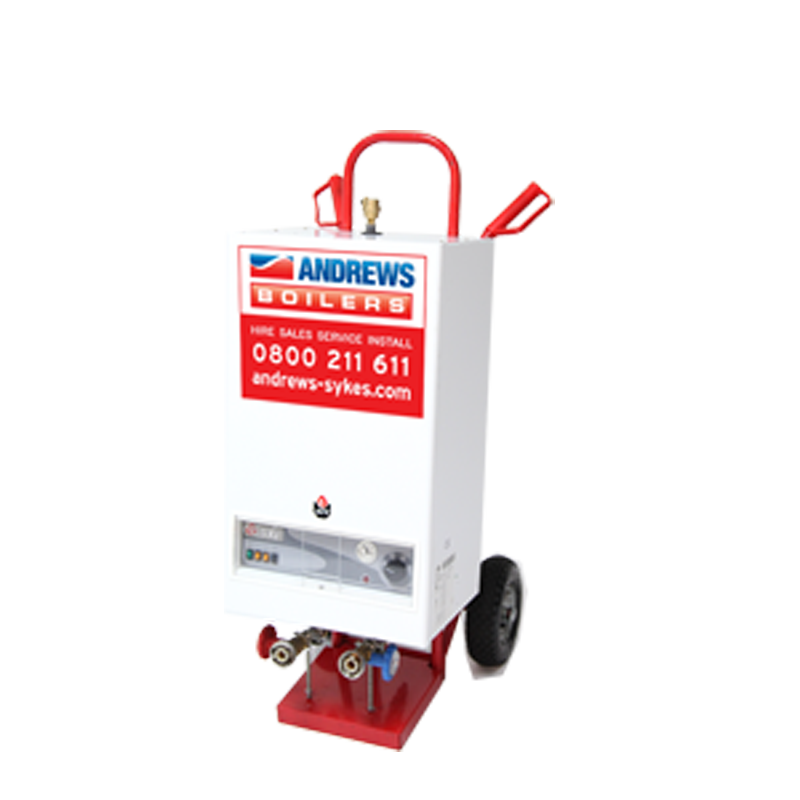

These robust electric boilers offer a reliable solution for generating heating and hot water, requiring only a 415V 32amp three phase power supply in order to function. Easily connected to existing systems, the 22kW electric boiler is extremely efficient and can be installed in tight spaces due to its small dimensions and excellent mobility courtesy of a wheeled sack truck mounting configuration. This model is suitable for a multitude of applications including heating only and smaller hot water services via our plate heat exhanger range. Primarily designed for use on underfloor heating projects and screed curing to complete operational systems, the 22kW electric boiler features a fully controllable thermostat to enable gradual temperature rises when required. These units feature stage two electric elements to conserve energy and limit power consumption, keeping running costs low. Ideal for temporary breakdown replacements, the 22kW boiler is equally suitable for use on early stage construction projects, manufacturing applications and in the events industry.
Feature
for easy manoeuvrability
to existing systems for quick installation
and hot water for a variety of applications
for cost-effective operation
power supply for simple set-up
enabling use in space-restricted areas
for multitude of environments
planned maintenance or urgent projects
| Nominal heating duty | 22kW |
|---|---|
| Power supply | 415 V 3ph N+E Run 31 A |
| Plug type | BS4343 5 pin 32 A |
| Noise level | 35 dBA @ 10 metres |
| Weight (kg) | 50 kg |
| Dimensions (L x W x H) | 600 x 550 x 1100 mm |
| Fuel type | Electric |
| Average power consumption | 14.4/21.5 kW |
10M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
20M x 5 PIN 32 AMP 415V EXTENSION LEAD 6MM DIA
STORTZ HOSE 25MM LPHW
STORTZ CONNECTOR 25MM
PLATE HEAT EXCHANGER
BOOSTER PUMP
BUFFER TANK
