XFP80E-CB1.3

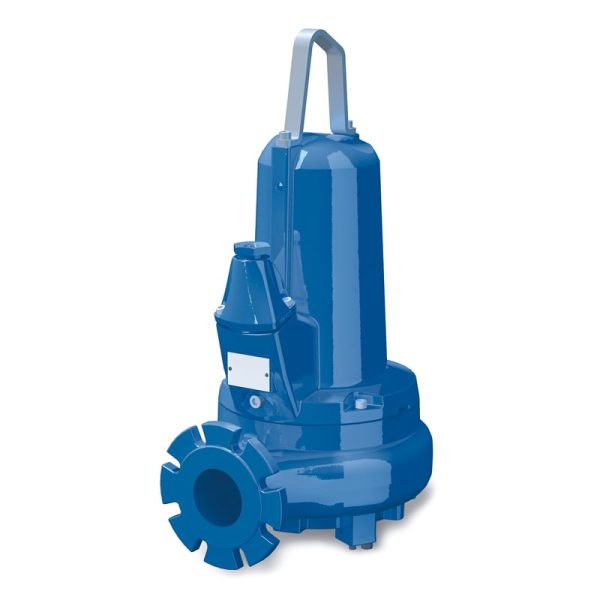

For private, commercial, municipal and industrial wastewater applications, the robust 3” XFP80E pump is ideally suited to small diameter discharge applications. Powered by an efficient 11kW high efficiency motor, the unit delivers heads of up to 36 metres and a maximum flow of up to 35 litres per second. This economical submersible sewage pump is primarily designed for use in standard and network pumping stations. The presence of a premium efficiency motor and 45mm solids handling Contrabloc impeller helps to conserve energy and keep running costs low.

Key Features

Feature

Contrabloc Impeller provides

blockage-free operation

Double mechanical seals

for maximum abrasive resistance

Premium Efficiency IE3 motor

for reduce energy consumption

Simple design allows minimal

service and maintenance

Easily portable

so can be positioned quickly

Motor protection reduces

the risk of damage

Compact

so fits small spaces

No vibration allows smooth

running and constant flows

Product Specification

Additional information

Model	XFP80E CB1.3
Motor type	415V
Motor rating	11kW
Max power input	12.1kW
Running current	20.1A
Discharge spigot	3"
Maximum solids	45mm
EX Rated	Yes
Cooling jacket	Yes
Guide rail option Height	795mm
Free standing Height	900mm
Maximum Width	690mm
Minimum Width	450mm
Weight	175kg

Downloads

Accessories

VARIABLE PANEL 1KW TO 15KW
3″ 20FT W/A SUCTION HOSE BAUER
3″ 20FT POLYTUBE
3″ X 6M HELIFLEX PVC BAUER HOSE
3″ 90* BEND
3″ GATEVALVE
3″ NON RETURN VALVE

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping networks
Sewage
General maintenance
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utility industries
